Practical metal fabrication shaped around your drawings, tolerances, and delivery requirements.
Workshop focus
Accuracy at every stage
[ 01 ]
Drawing-led
[ 02 ]
Built to fit
[ 03 ]
Checked in process
[ 04 ]
Ready for dispatch
CAPABILITY // 23 STAGES
Every tank body moves through the same controlled sequence — from drawing review to dispatch.
SELECTED PROJECTS // RECENT WORK
A selection of fabricated work — transformer bodies, end frames, and copper flexibles produced to customer drawings.

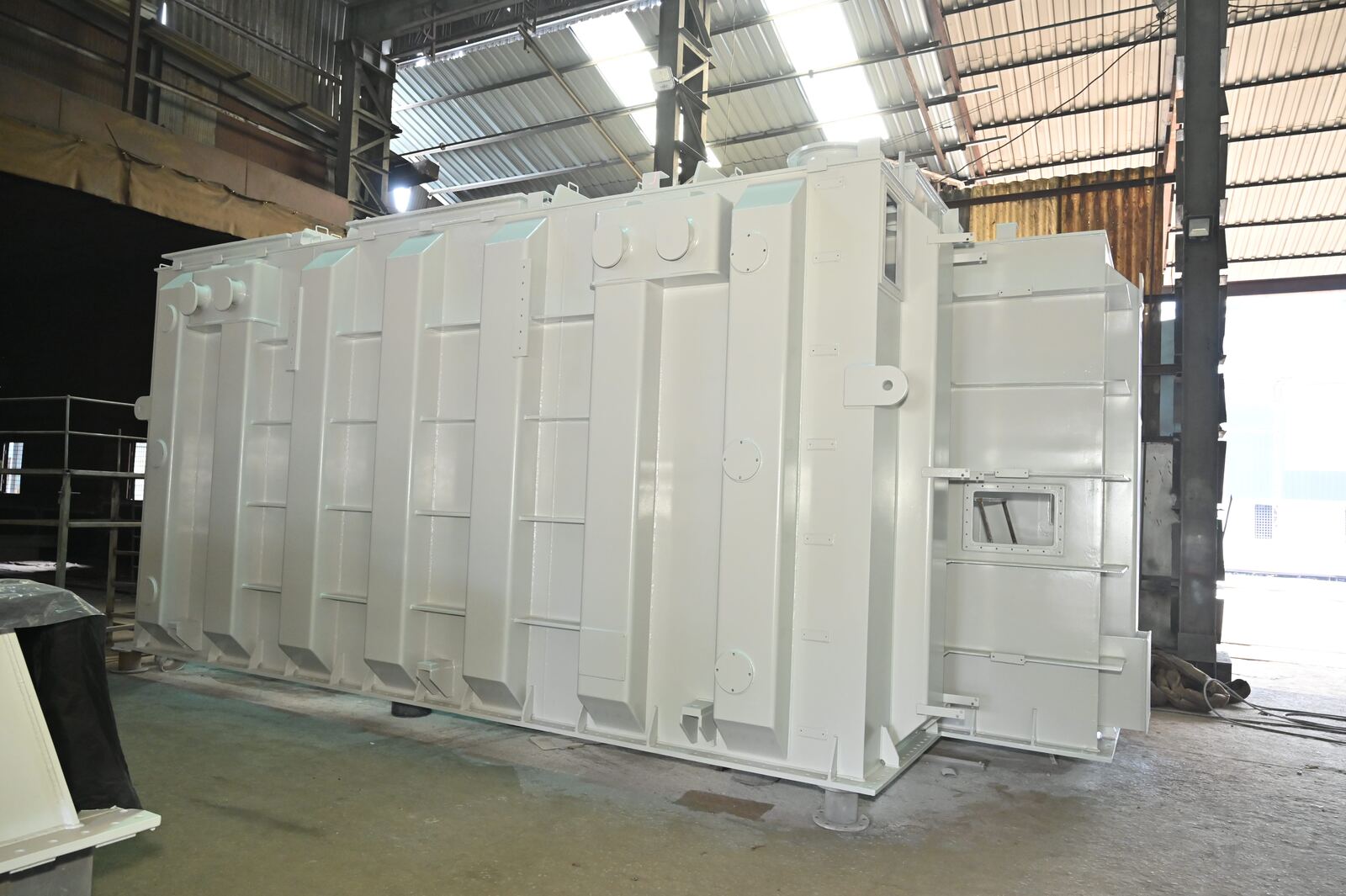

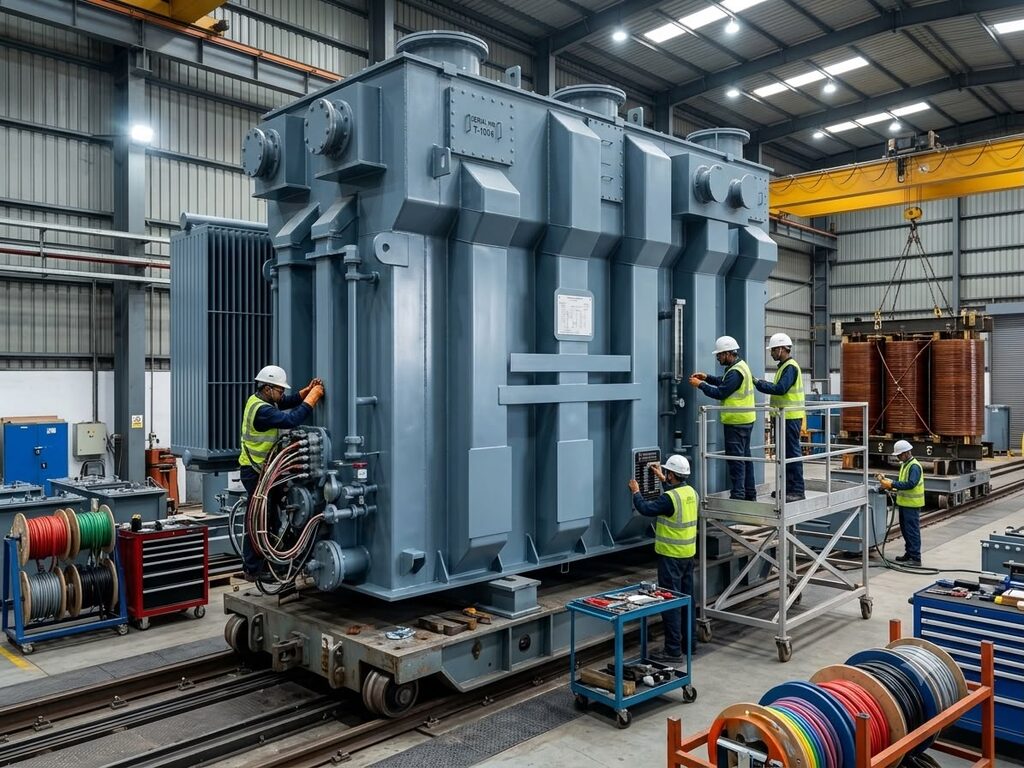

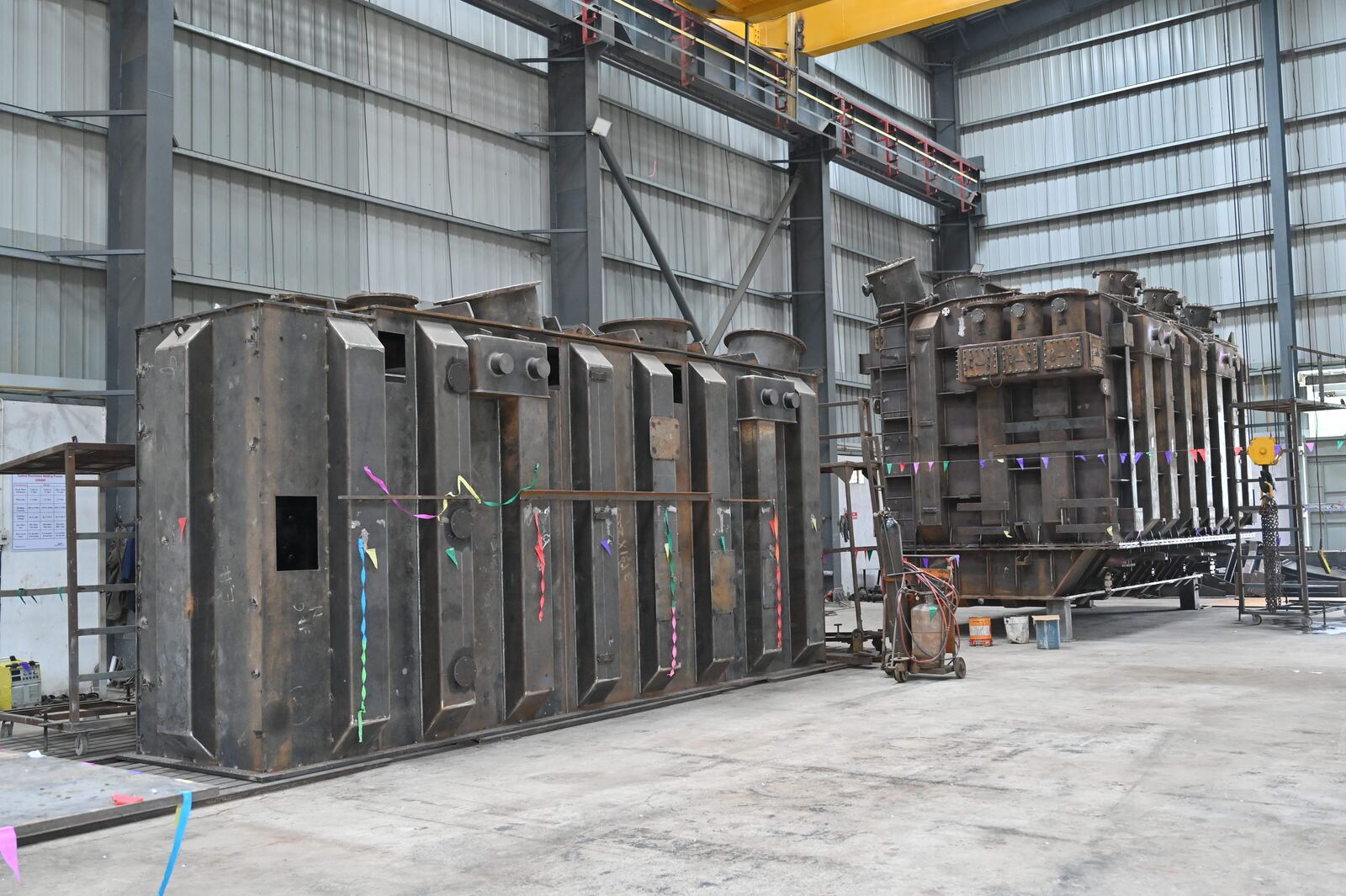

Our transformer tank bodies are manufactured with a strong focus on dimensional accuracy, structural integrity, welding quality, leak-proof performance, and long-term durability. We manufacture tanks suitable for power and distribution transformers across a wide range of voltage and MVA ratings.

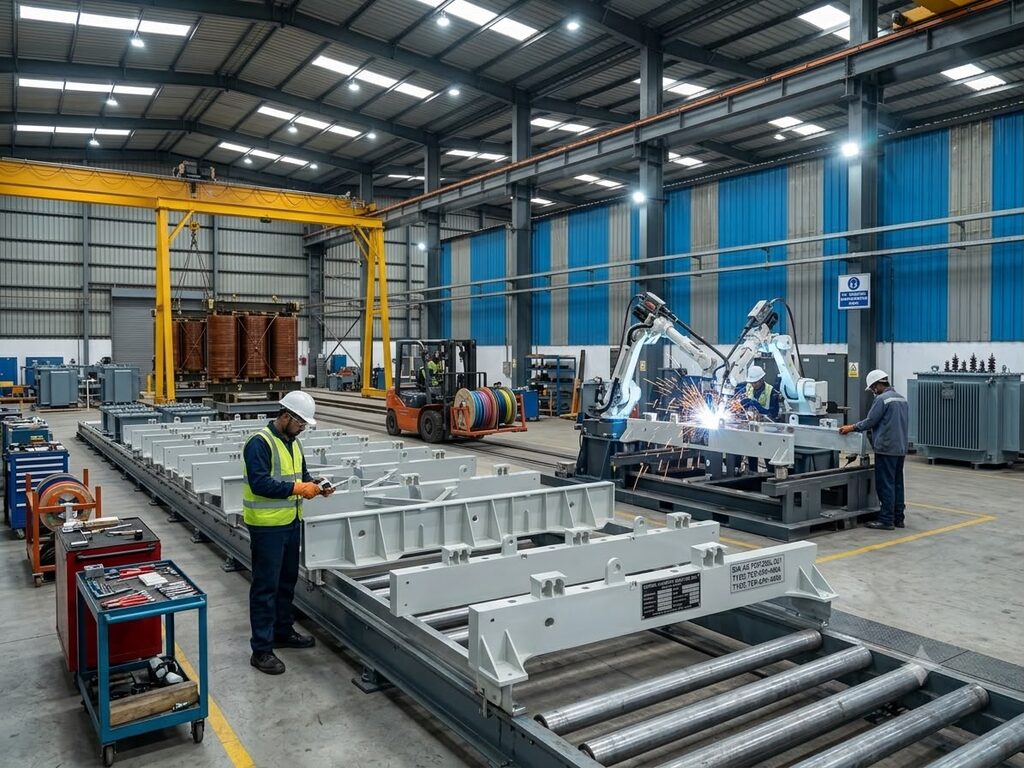

End Frames and Dashpots are precision-fabricated components used in transformer construction to provide structural support, stability, and secure mounting of associated transformer components.
Special attention is given to dimensional accuracy, weld quality, rigidity, and surface finish, as these components must withstand mechanical loads and stresses encountered during transformer assembly, transportation, and operation.

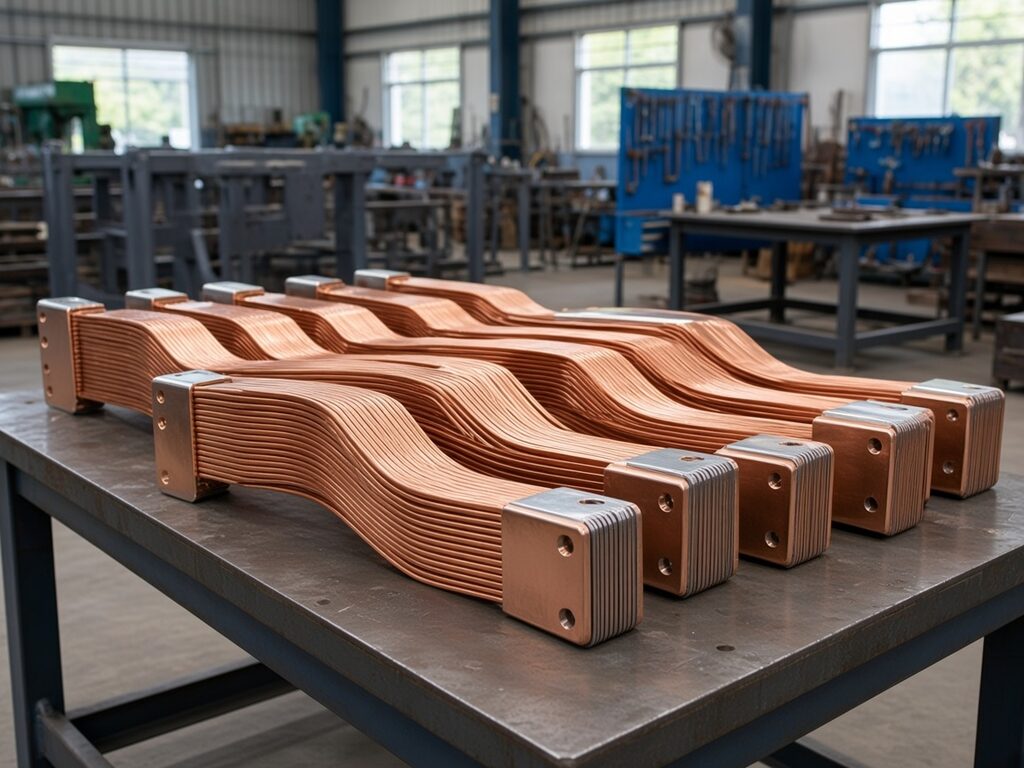

Laminated copper flexibles with pressure-welded, drilled ends for transformer terminal connections.
GALLERY // INSIDE THE WORKS

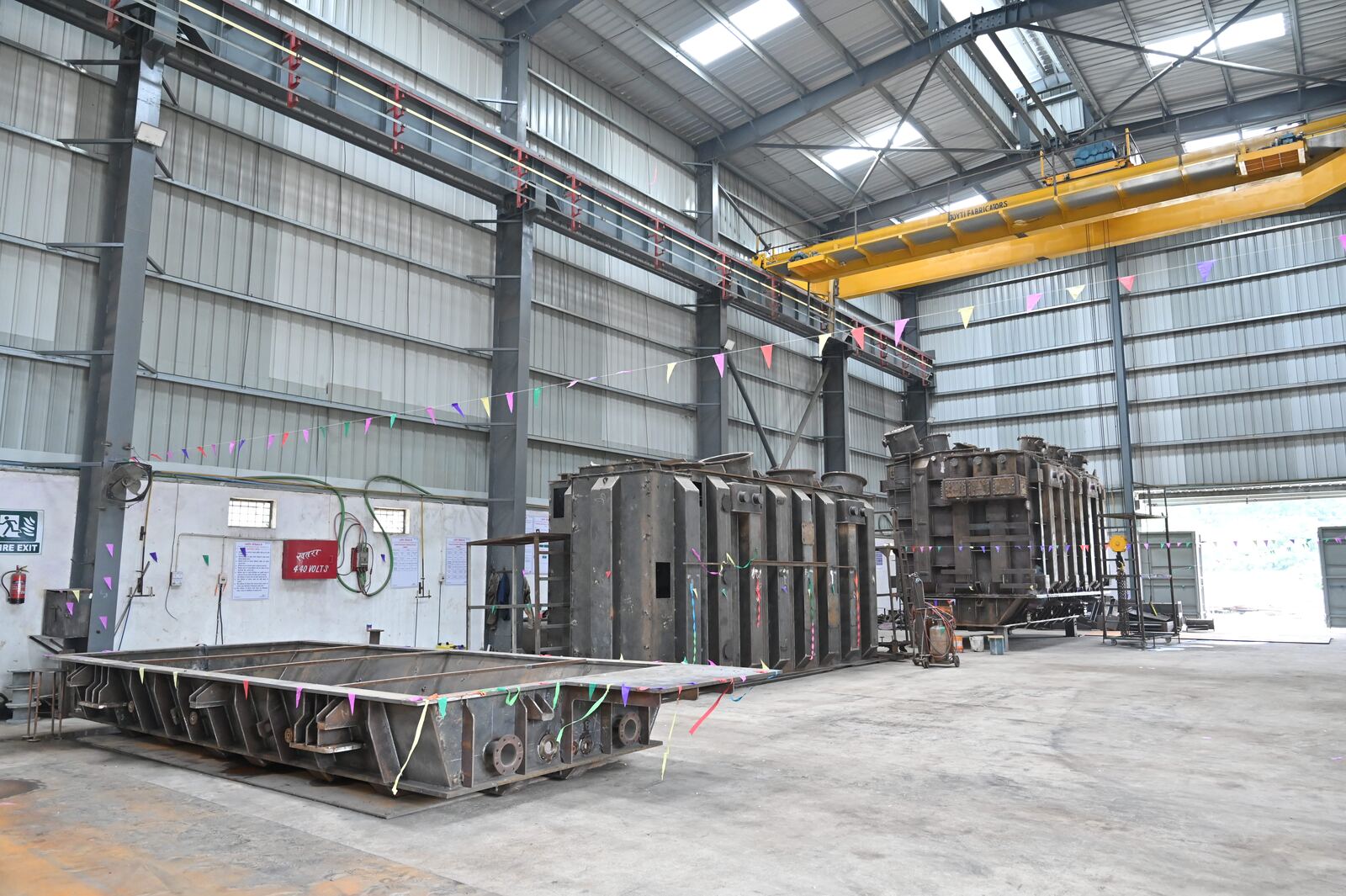

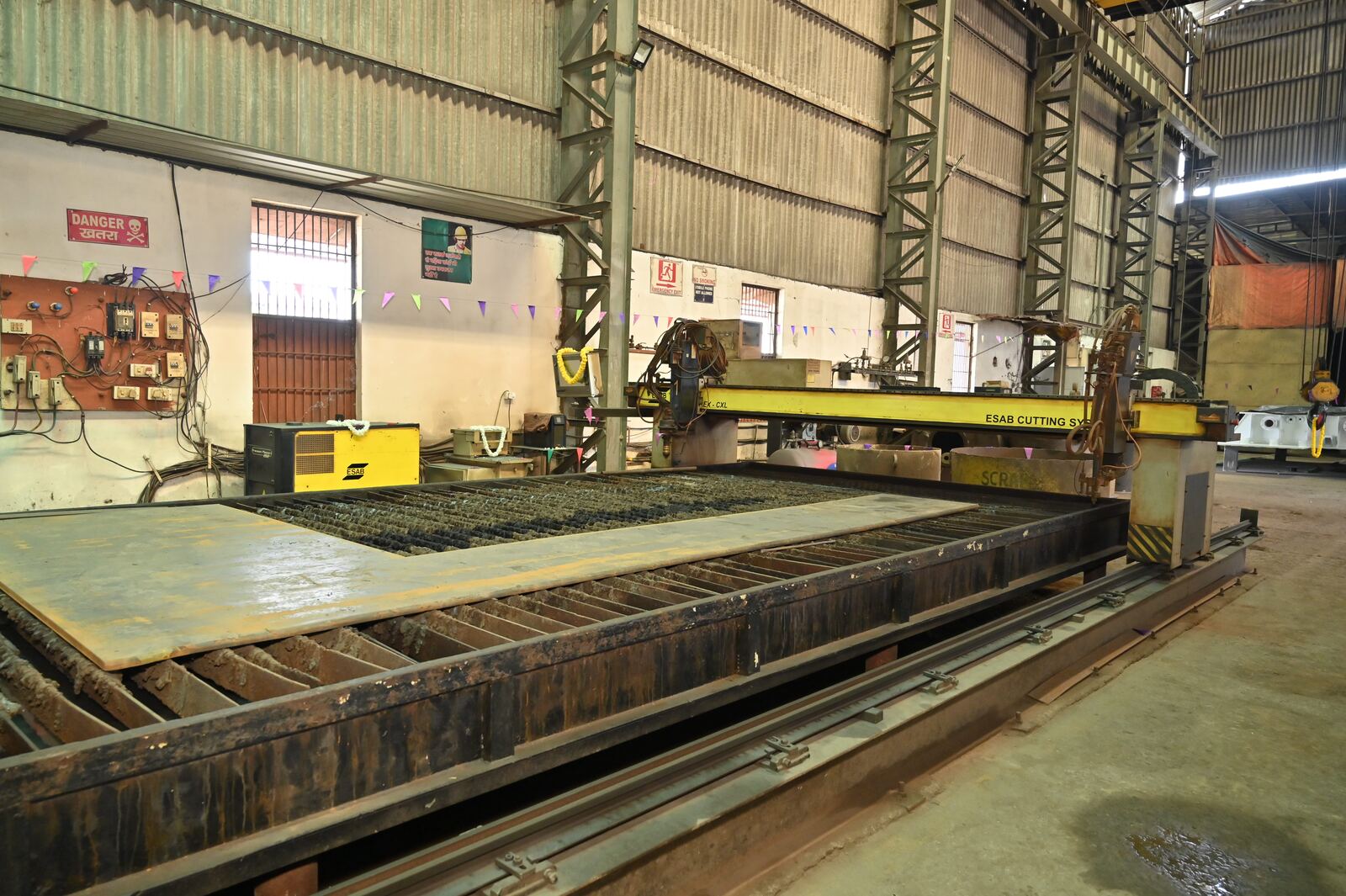

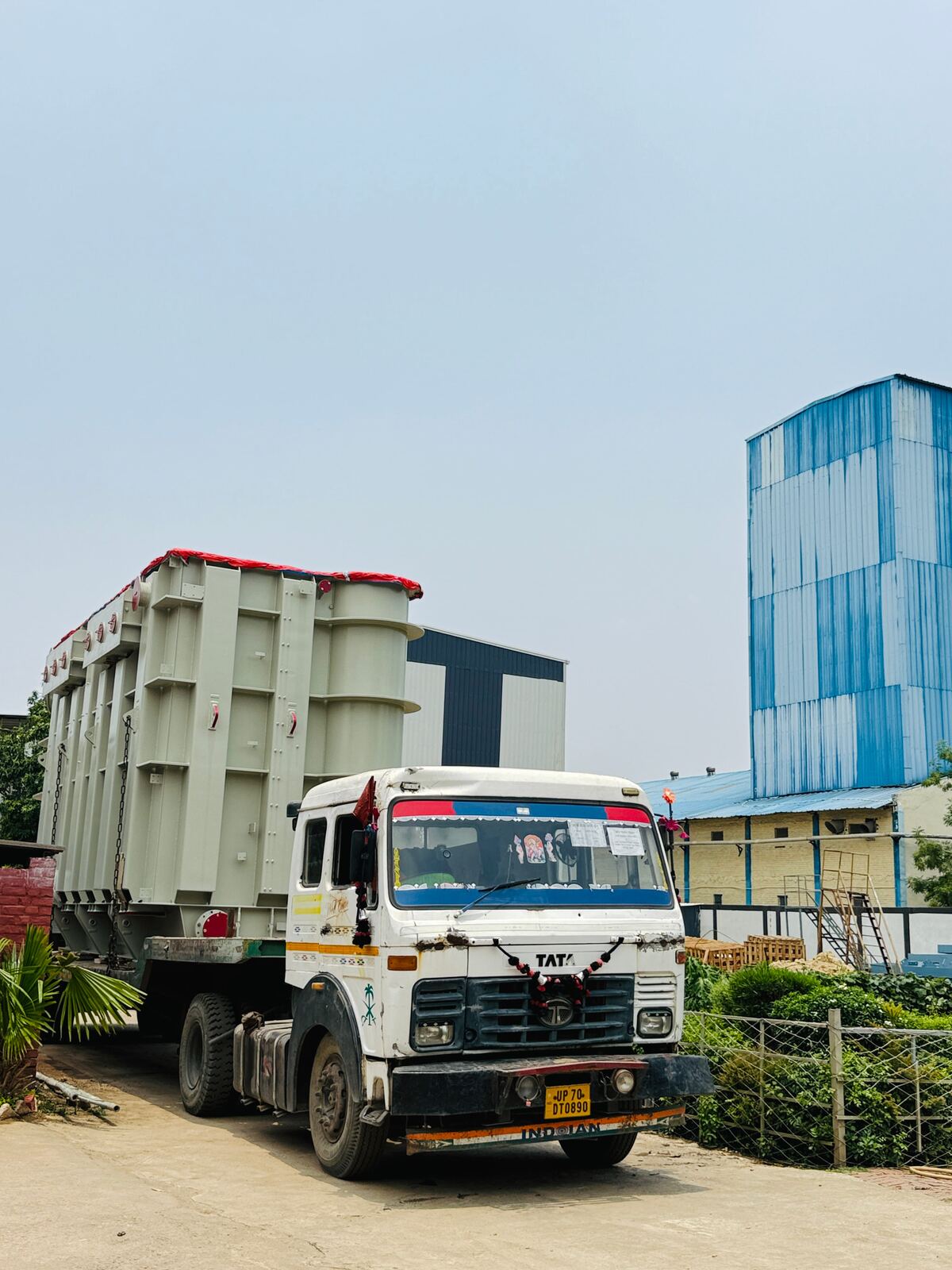

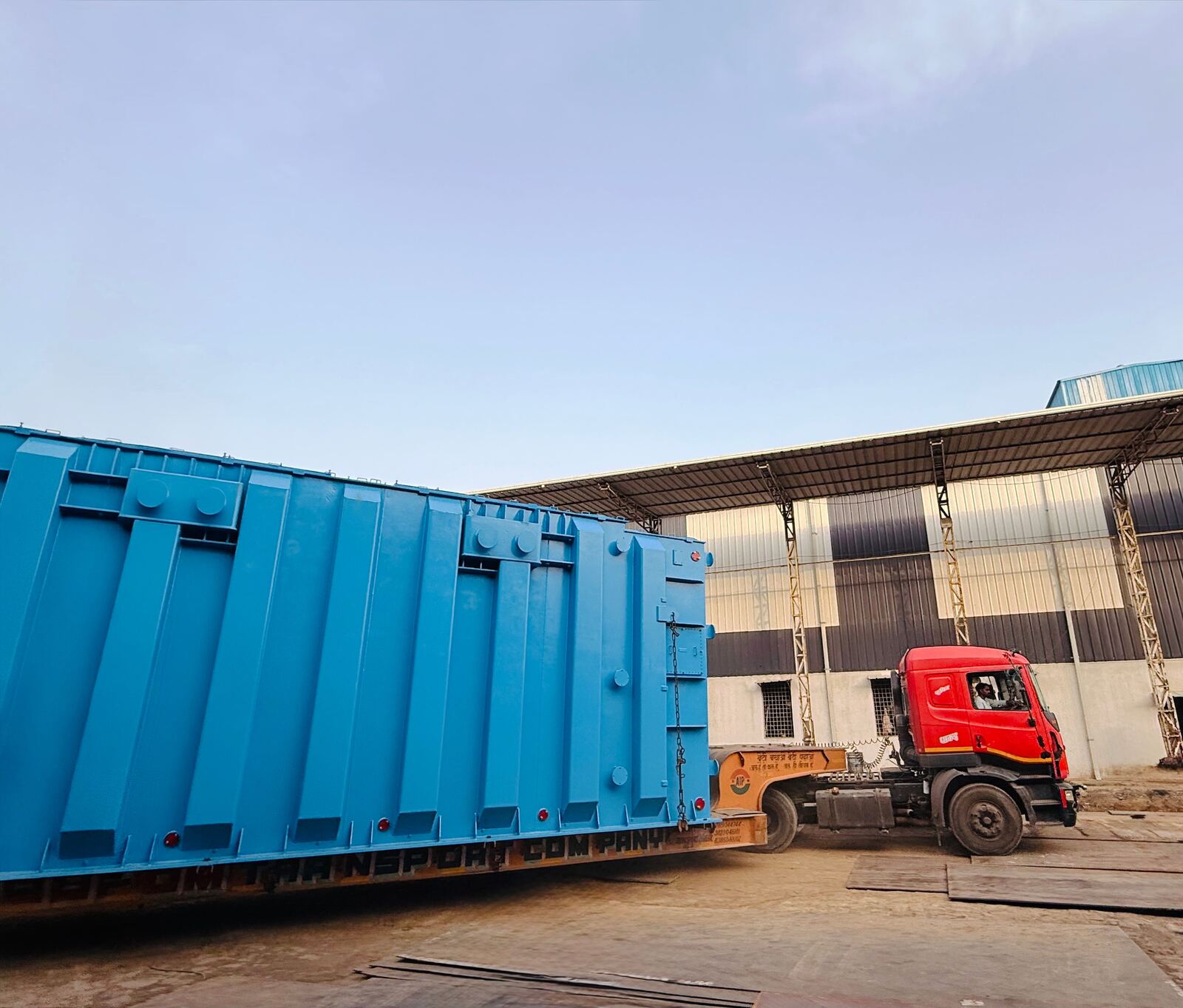

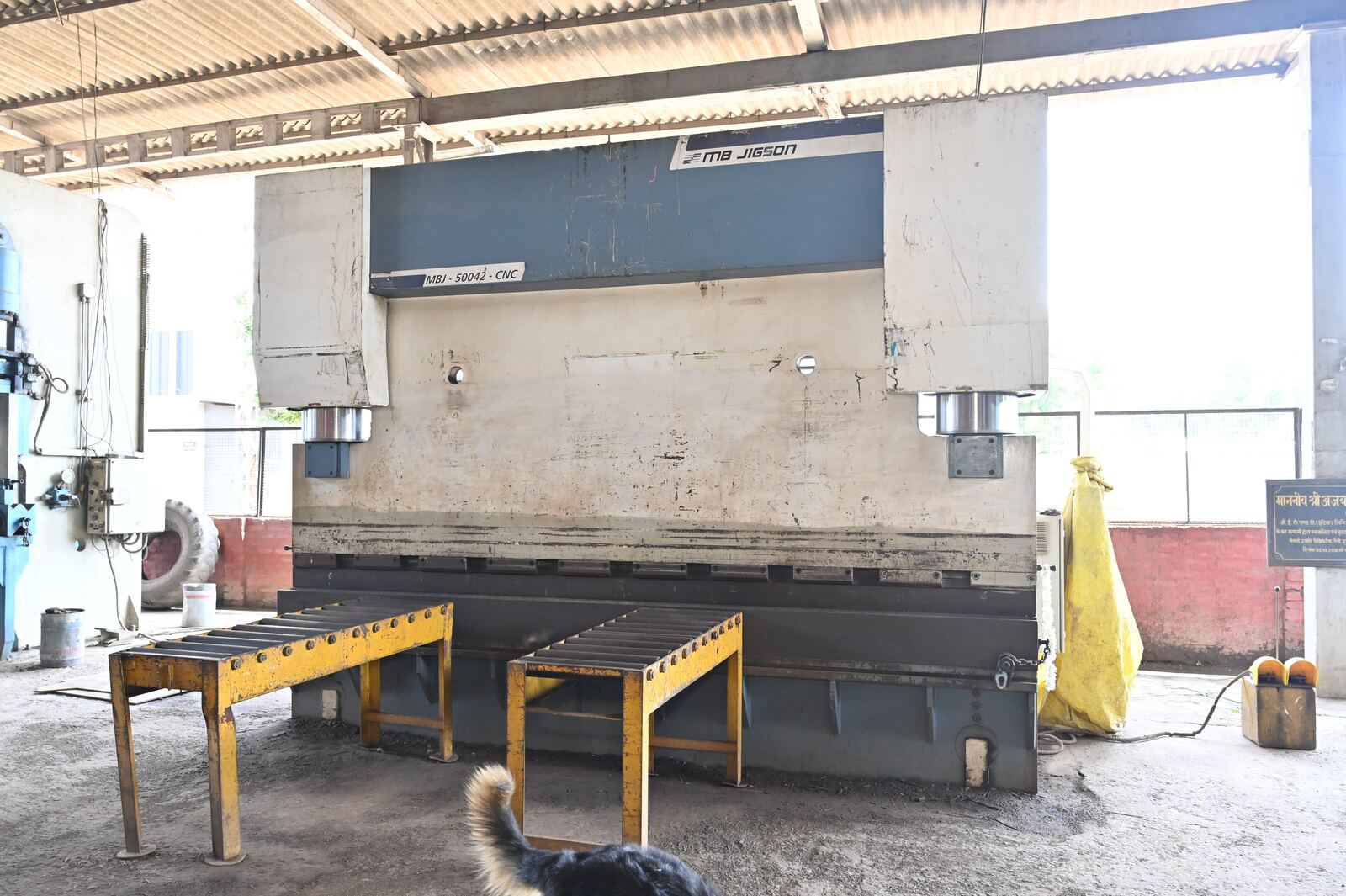

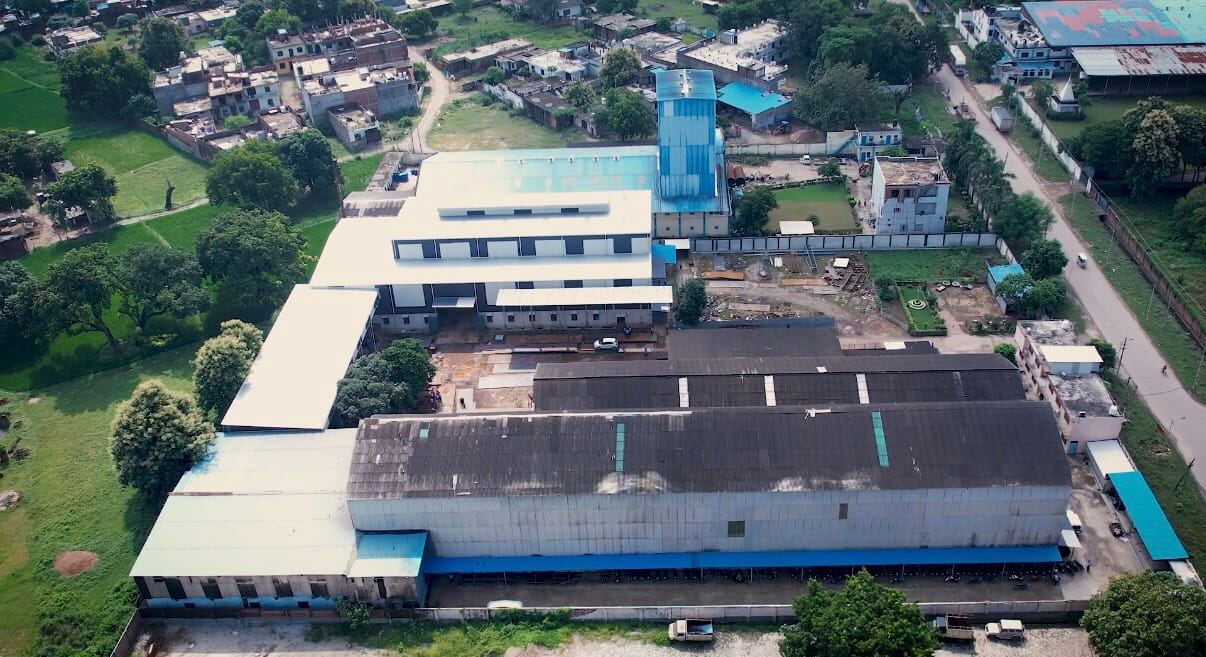

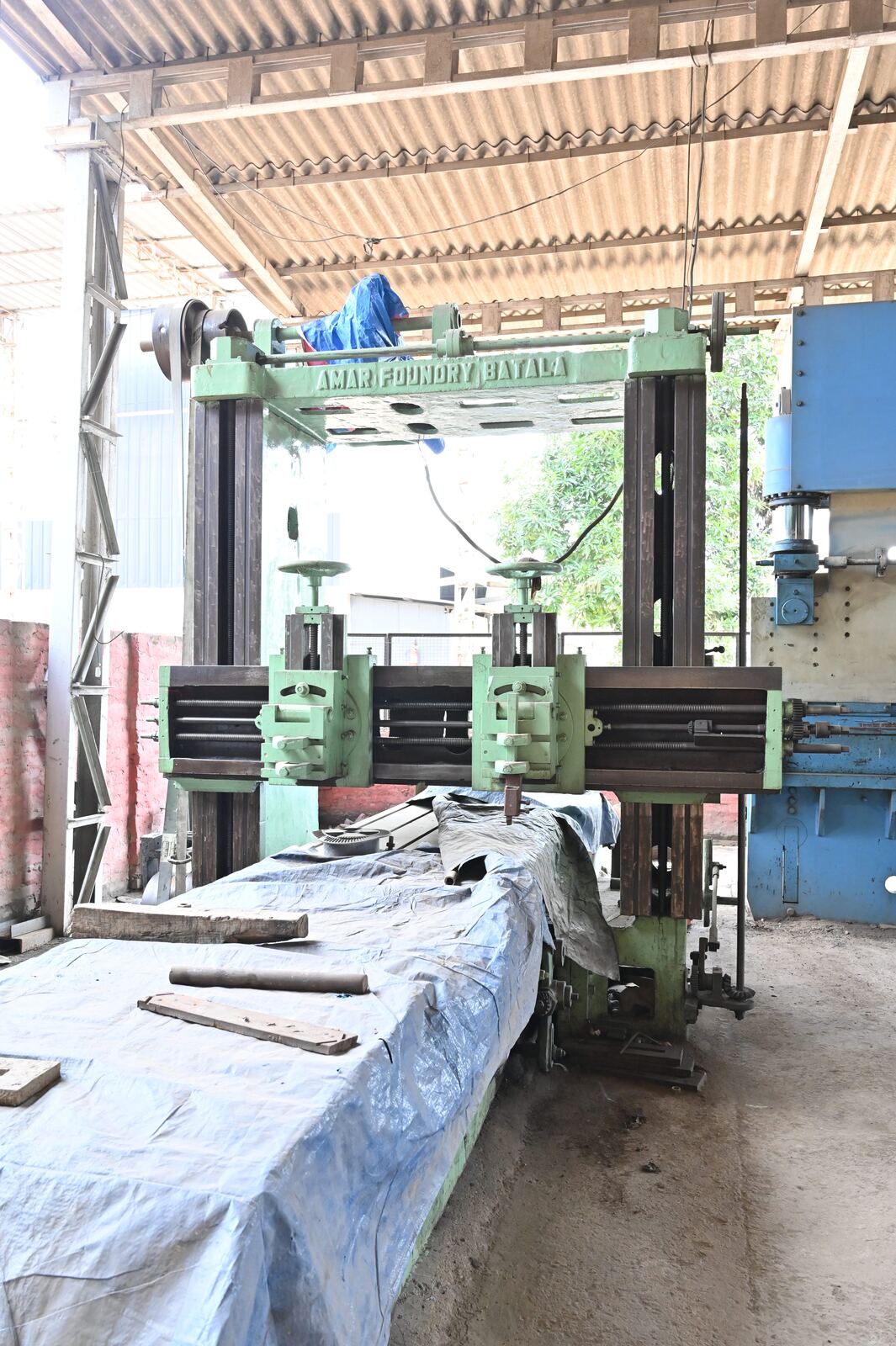

A look at the fabrication bays, machine shop, and finished work leaving the site — photographed at the Jyoti Fabricators facility.
IN MOTION // LIVE FROM THE FLOOR
Unedited moments from the Jyoti Fabricators floor — fitting, welding, finishing, and checking work against the drawing. Tap any clip to watch it with sound.
WORKFLOW // FOUR STAGES
A straightforward production path keeps decisions visible and each stage accountable.
01
We study the drawing, material, tolerances, quantity, and finish before work begins.
02
Material is measured, cut, and readied around the approved production plan.
03
Skilled hands form, fit, weld, and finish each part to the agreed specification.
04
Dimensions, joints, and finish are checked before the completed work is released.
WHAT WE WORK WITH
PROJECT ENQUIRY
Share your requirement, quantity, material, and expected delivery window with the Jyoti Fabricators team.
